Additional information Recreation

Drinking Fountains
Section 4.1.2(9)

If drinking fountains are provided, then at least 50% but not less than one must meet the UFAS requirements.

Section 4.15.5(2)
Examples of innovative design
in drinking fountains

 The following drinking fountain
concepts are designed to
accommodate both standing and
seated users. They are good
examples of universal design.


 Pivoting drinking fountain in a raised
position for standing users.


 Pivoting drinking fountain in a lowered
position for seated users.


 The wave drinking fountain is in a fixed
position, but can accommodate standing
users..........


 .......as well as seated users.

Note the generous clearance under
these fountains.
Drinking fountain
Figure 1

If the unit is free-standing or built in and does not have a clear space underneath it, does it have a clear floor space alongside it at least 30 by 48 inches which allows a wheelchair user to make a parallel approach?


Section 4.15.5(1)
Drinking fountain
Figure 2

If the unit is wall or post mounted is there a clear knee space between the bottom of the apron and the ground which is at least 27 inches high, 30 inches wide and 17 inches deep?


Section 4.4.1
Section 4.15.2
If there is more than one fountain/
cooler on a floor, only 50% have to
meet these requirements. Thus, if
there was a complying fountain, a
unit like that at the right would be
acceptable.
Drinking fountain
Figure 3

Is the spout outlet no higher than 36 inches from the ground?


Section 4.15.3
This rule insures that people with
disabilities who cannot drink from
the spout directly still can use the
fountain. The flow of water does not
have to be exactly parallel.

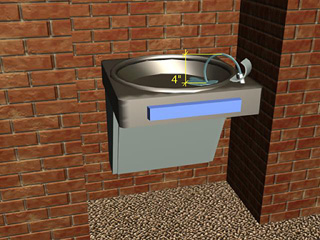

Drinking fountain
Figure 4

 Is the spout at the front of the unit, with a water flow parallel or nearly parallel to the front edge and a water stream at least 4 inches high to allow the insertion of a cup under the stream?


Section 4.15.4

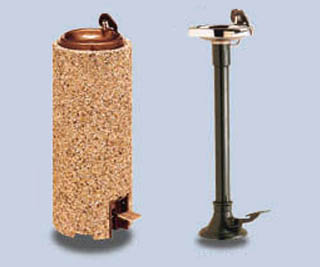

Drinking fountain
Figure 5

Are the controls located near the front edge and are they operable with one hand and without tight grasping, pinching, or twisting of the wrist?
